Hydraquip is proud to partner with Wandfluh, a leader in hydraulic technology, to bring innovative solutions to industries that demand precision, reliability, and robust performance. Among Wandfluh’s most advanced offerings are their Proportional Pressure Relief Valves and Proportional Pressure Reducing Valves, particularly the M22x1.5 series. These components are essential in maintaining precise control within hydraulic systems, making them indispensable across a range of industrial and mobile applications.
What Are Proportional Pressure Relief and Reducing Valves?
In hydraulic systems, maintaining consistent and precise pressure is crucial. Proportional pressure relief valves are designed to regulate system pressure by releasing excess hydraulic fluid when pressure exceeds a predefined limit. Similarly, proportional pressure reducing valves ensure that pressure downstream of the valve remains within safe and optimal ranges.
Both valve types use advanced proportional solenoid technology to provide smooth and precise control, making them ideal for systems that require constant adjustments based on operational demands.

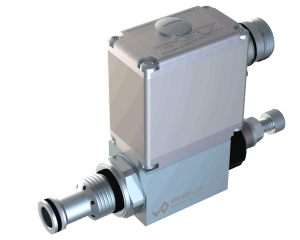

Key Features of Wandfluh’s Proportional Pressure Relief Valves
Wandfluh’s proportional pressure relief valves stand out due to their sophisticated design and advanced features, which enable seamless operation in demanding environments.
- Direct-Operated with Integrated Electronics
- These valves come pre-configured with factory-set electronics, ensuring a true plug-and-play experience.
- The integration of electronics allows for precise pressure modulation, crucial in systems where fine adjustments are needed.
- Thread and Cavity Compatibility
- With a thread size of M22x1.5 conforming to ISO 7789 standards, these valves integrate easily into diverse hydraulic systems, enhancing their versatility.
- High Reproducibility and Precision
- Engineered to deliver consistent performance across units, these valves provide unmatched reliability, especially in applications requiring tight operational tolerances.
- Durable Electronics Housing with IP67 Protection
- The robust housing ensures resistance to dust, moisture, and harsh environmental conditions, making them suitable for outdoor and industrial settings.
- Wide Pressure Range Options
- With options ranging from 20 to 350 bar, these valves cater to varied operational needs, offering flexibility and adaptability for different applications.
- Superior Flow Performance
- The use of the differential area principle allows the valves to achieve excellent flow characteristics, ensuring smooth and efficient operation.
- Leakage Minimization
- The innovative poppet guide design reduces leakage, maximizing operational efficiency and reducing maintenance needs.
- Zinc-Coated Steel Construction
- Built with corrosion-resistant materials, these valves are designed to withstand the rigors of challenging environments.
Proportional Solenoid Operation
At the core of these valves is the Wandfluh proportional solenoid, a critical component designed according to VDE-Norm 0580 standards. This solenoid ensures reliable operation, even under variable load conditions, providing smooth adjustment and maintaining system stability.
Applications of Proportional Pressure Relief and Reducing Valves
These valves are versatile and can be used in a variety of industries and settings, including:
- Industrial Hydraulics
- In manufacturing and automation, these valves ensure precise control over system pressure, contributing to efficient and safe operations.
- Mobile Hydraulics
- From construction vehicles to agricultural machinery, these valves are integral to maintaining flexibility and responsiveness in dynamic conditions.
Specific Applications Include:
- Control Blocks and Flange Bodies: Their compatibility with NG4-Mini and NG6 sizes allows for seamless integration into compact systems.
- Pressure Modulation in Critical Systems: Their high reproducibility ensures consistent performance, even in systems requiring rapid adjustments.
Supporting Tools and Accessories
Wandfluh also provides tools to simplify the installation and maintenance of these valves. Cavity tools for machining in steel and aluminum can be purchased or rented, offering users flexibility and convenience when setting up their systems.
Why Choose Wandfluh’s Proportional Valves?
Wandfluh’s proportional pressure relief and reducing valves represent the pinnacle of hydraulic engineering. Here’s why they’re a preferred choice for so many industries:
- Ease of Installation
- The integrated electronics simplify the setup process, reducing downtime and streamlining system integration.
- Unmatched Precision and Repeatability
- These valves are designed for systems where consistent and accurate performance is a priority.
- Robust Design for Harsh Environments
- Engineered to endure tough conditions, the valves maintain their integrity and performance over extended periods.
- Versatility Across Applications
- With a broad pressure range and compatibility with various hydraulic setups, these valves are adaptable to numerous operational needs.
By incorporating these proportional valves into your hydraulic systems, you’re investing in a solution that balances advanced technology, durability, and efficiency.
Hydraquip and Wandfluh: A Trusted Partnership
At Hydraquip, we understand the importance of delivering solutions that meet the unique demands of your industry. That’s why we’re proud to partner with Wandfluh to bring their exceptional proportional pressure relief and reducing valves to our customers. With a shared commitment to quality and innovation, Hydraquip and Wandfluh provide the tools you need to optimize your operations.
Whether you’re in industrial automation, construction, or mobile hydraulics, Wandfluh’s proportional valves offer the precision and reliability necessary for success.
Contact Us Today
Are you ready to elevate your hydraulic systems with Wandfluh’s industry-leading valves? Contact Hydraquip to learn more about our solutions and how we can support your needs. Let’s build a better, more efficient system together.
